Preview GIFs Directly from the Linux Terminal

Overview

Opening resource-heavy desktop photo applications just to inspect a looping graphic or render sequence can disrupt an efficient terminal workflow. Fortunately, ImageMagick 7 bundles animate-im7.q16, an agile X11 utility engineered to preview motion graphics straight from your command line. This practical walkthrough covers package configuration, programmatic frame generation, playback velocity overrides, and cycle-control flags for everyday sysadmin and developer tasks.

1. Setting Up ImageMagick and Verifying animate-im7.q16 Capabilities

Before launching visual previews, pull down the necessary ImageMagick toolchain by synchronizing your package index and deploying the binaries through apt:

sudo apt-get update -qq && sudo apt-get install -y imagemagick

Installing ImageMagick quietly via apt-get

The animate-im7.q16 binary is designed to render multi-frame animations and sequential stills within an X display window launched directly from the shell. Passing the -version flag reveals compiled features, security policies, and build specifications:

⚙️ Key Execution Flags:

-delay : Defines the inter-frame pause duration (measured in ticks/centiseconds).
-loop : Controls how many times the animation sequence cycles before stopping.
-pause : Establishes a rest interval (in seconds) between consecutive iterations.
-title : Assigns a custom caption to the viewer window header bar.
-backdrop : Spreads a seamless matte across the monitor and centers the animated asset.

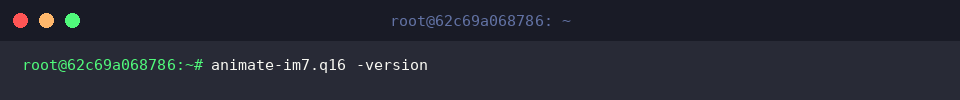

Checking installed ImageMagick and animate engine version

2. Generating Mock Frame Assets and Building a Test GIF

To experiment with these flags without cluttering your home environment, prepare a clean temporary workspace:

mkdir -p ~/animate-demo && cd ~/animate-demo

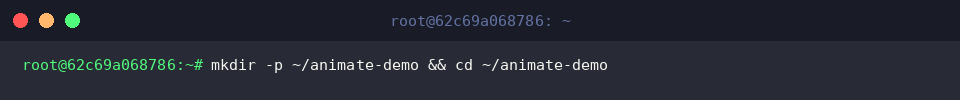

Creating and entering the demonstration directory

Using ImageMagick’s drawing canvas capabilities, generate the starting frame depicting a centered red circle over a 200x200 white background:

convert -size 200x200 xc:white -fill red -draw 'circle 100,100 100,50' frame1.png

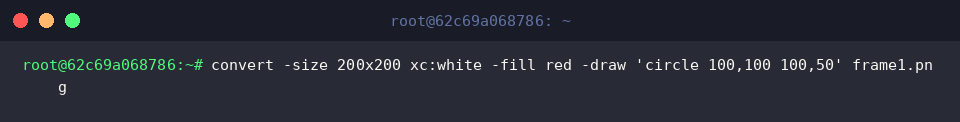

Drawing red circular frame with convert

Produce a contrasting secondary frame featuring an expanded blue sphere to create a clear visual transition between cuts:

convert -size 200x200 xc:white -fill blue -draw 'circle 100,100 100,20' frame2.png

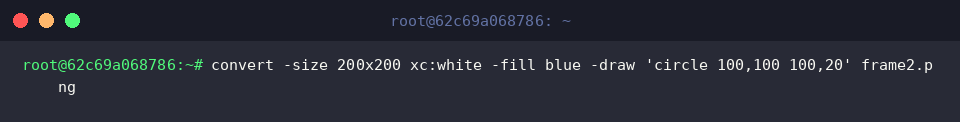

Generating the secondary blue circle frame

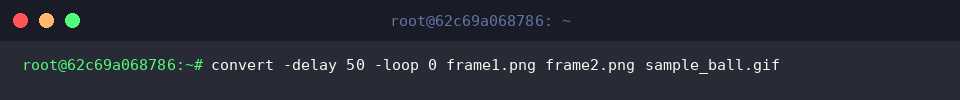

Combine both graphic slices into an infinite-loop animation configured with a 50-tick cadence:

convert -delay 50 -loop 0 frame1.png frame2.png sample_ball.gif

Stitching individual frames into an animated GIF file

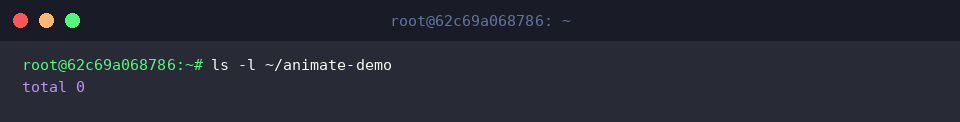

Verify that your newly rendered assets and composite GIF exist within the working directory:

ls -l ~/animate-demo

Verifying directory contents with ls -l

3. Launching animate-im7.q16: Single Files and Raw Image Stacks

Switch into the test folder where the generated assets reside:

cd ~/animate-demo

Switching into demo workspace directory

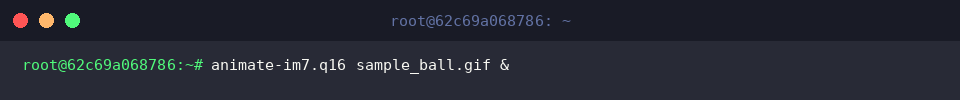

To verify the compiled animation while keeping your terminal prompt responsive, fork the viewer into the background:

animate-im7.q16 sample_ball.gif &

Appending the & operator frees your shell immediately, enabling you to continue entering commands while an independent X11 window plays the motion sequence.

Running the animated GIF playback process in the background

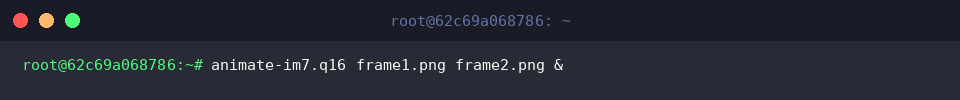

You do not even have to pre-render individual graphics into an archive file. Simply pass discrete image filenames in sequence to view them dynamically like a flipbook:

animate-im7.q16 frame1.png frame2.png &

The viewer walks through each provided path in order, providing a rapid method to validate time-lapse renders, security snapshots, or generated charting plots.

Playing multiple discrete image files as an in-memory sequence

4. Tuning Playback Speed and Setting Cycle Constraints

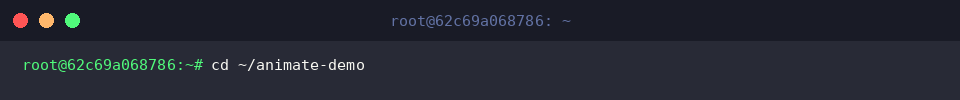

Navigate back to the directory holding your sample media:

cd ~/animate-demo

Navigating to target asset directory

If the default tempo is too sluggish, pass a reduced duration to -delay to accelerate transitions:

animate-im7.q16 -delay 20 sample_ball.gif &

Assigning a value of 20 (approximately 0.2 seconds per frame step) delivers noticeably snappier animation playback.

Overriding default framerate with a custom delay setting

When examining intricate movements or limiting CPU consumption, combine an extended step delay with a strict iteration boundary:

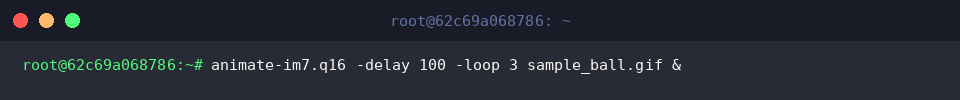

animate-im7.q16 -delay 100 -loop 3 sample_ball.gif &

Specifying 100 ticks (1 full second per slide) gives you ample time to inspect each detail, while -loop 3 terminates playback after precisely three full sequences.

Restricting loop cycles and reducing playback tempo

Leveraging animate-im7.q16 delivers an efficient, distraction-free workflow for reviewing dynamic image sequences directly from the Linux CLI. Keep these flags handy whenever you need to inspect animations rapidly without reaching for heavy GUI utilities.
