Overview
Automating graphic rendering directly from the Linux shell unlocks powerful pipeline workflows without touching bulky GUI editors. This walkthrough covers ImageMagick’s specialized composite utility, focusing on programmatic image stacking, dynamic watermark positioning, opacity adjustments, and blending modes for complete command-line graphic compositing.
Installing ImageMagick and Generating Sample Assets
Begin by pulling the latest package metadata and deploying the ImageMagick suite to your Ubuntu machine via apt-get update -qq && apt-get install -y imagemagick.

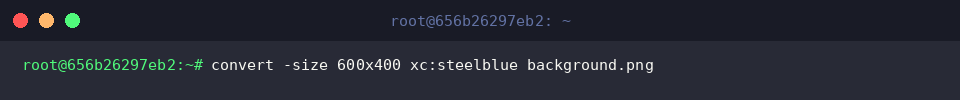

To build a testing canvas, spin up a steel-blue base image measuring 600x400 pixels by executing convert -size 600x400 xc:steelblue background.png.

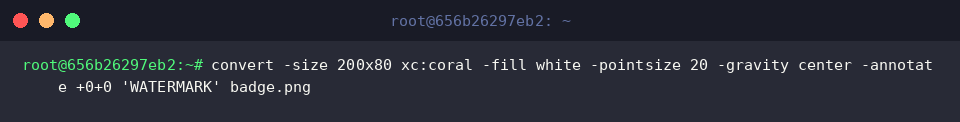

Next, create the overlay badge that will serve as our watermark. Running convert -size 200x80 xc:coral -fill white -pointsize 20 -gravity center -annotate +0+0 'WATERMARK' badge.png renders a coral banner featuring centered white text.

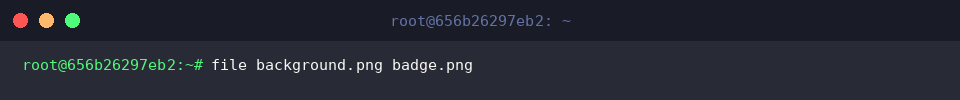

Inspect the generated assets to confirm their formats, dimensions, and color profiles with file background.png badge.png.
Layering Images with Precise Gravity and Geometry Offsets

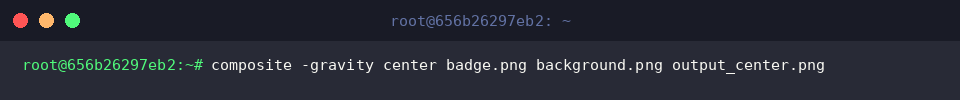

To center the badge directly on the backdrop, supply the -gravity center parameter when calling composite. The resulting composite is written to disk as output_center.png.

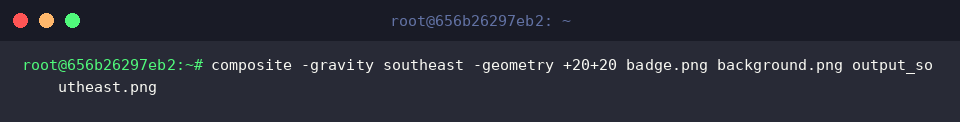

Anchoring an overlay to a corner requires combining compass alignment with offset margins. Pairing -gravity southeast with -geometry +20+20 tucks the watermark into the bottom-right corner while maintaining a 20-pixel padding, saving the final render to output_southeast.png.

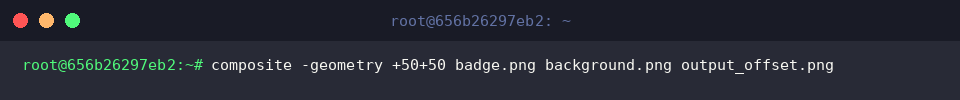

Absolute positioning relies on coordinate offsets calculated from the default top-left origin. Running composite -geometry +50+50 badge.png background.png output_offset.png shifts the overlay 50 pixels along both horizontal and vertical axes.

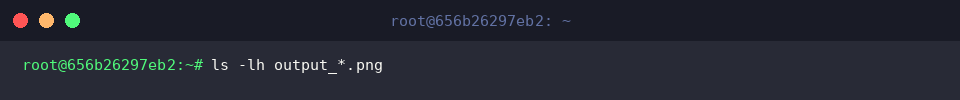

Run ls -lh output_*.png to verify the generated files, reviewing their individual disk footprints and output statuses.
Crafting Watermark Effects Using Opacity Controls

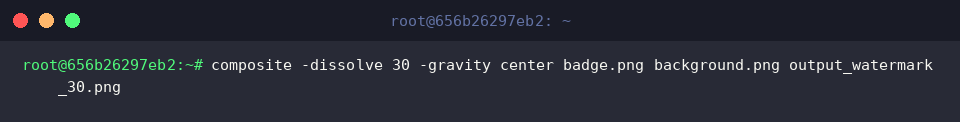

A translucent mark prevents visual obstruction of underlying subject matter. Invoking -dissolve 30 drops the badge transparency to 30%, centering the subtle watermark over the backdrop into output_watermark_30.png.

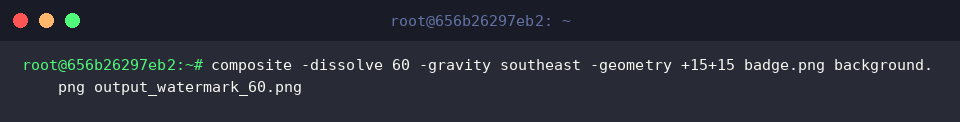

Dialing the opacity up to 60% with -dissolve 60 produces a bolder overlay. Combined with -gravity southeast and a 15-pixel margin (-geometry +15+15), the more prominent tag is saved into output_watermark_60.png.

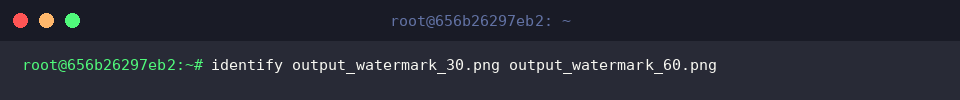

Run identify output_watermark_30.png output_watermark_60.png to inspect the geometry and color depth profiles across both transparent variants.
Applying Advanced Blend Modes and Inspecting Results

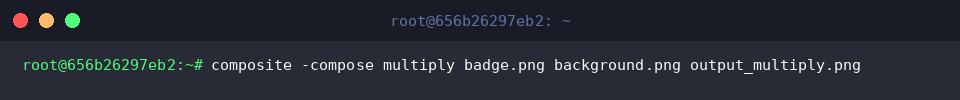

ImageMagick replicates standard digital imaging blend algorithms straight from the CLI. Applying -compose multiply calculates pixel product values between layers, deepening shadows and midtones to produce output_multiply.png.
Conversely, switching to -compose screen inverts, multiplies, and restores channel luminance. This illuminates overlapping pixels to yield the soft, light-lifted visual saved in output_screen.png.

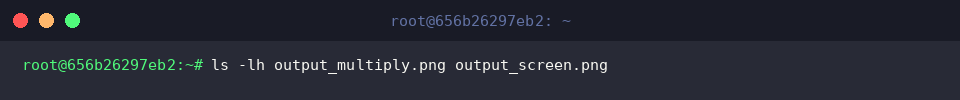

Examine the finalized blended renders by querying directory details through ls -lh output_multiply.png output_screen.png.
Leveraging the composite tool alongside bash loops enables fully unattended, server-side asset watermarking and graphics pipelines. Incorporate these foundational flags into your scripts to streamline high-volume image processing workflows on Linux.
