Overview
When handling batch graphics workflows on an Ubuntu system, graphical editors quickly introduce friction and overhead. ImageMagick’s foundational convert utility addresses this challenge by providing a scriptable, terminal-driven interface for complex image manipulations. This guide walks through package setup, core flags, format conversions, geometry adjustments, and compression strategies directly from the command line.
Installing ImageMagick & Handling Format Conversions

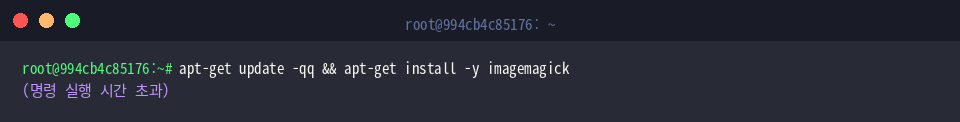

Begin by provisioning the ImageMagick package onto your Ubuntu environment through the standard APT package manager:
As a primary component of the ImageMagick suite, convert processes everything from format transcoding and scaling to multi-axis reorientations. You can verify your environment’s installed build details and available delegates with convert -version | head -n 2.
⚙️ [Essential Flags]
-resize : Adjusts overall pixel resolution while respecting aspect ratios or adhering to bounded coordinates.-quality : Sets compression ratios between 1 and 100 to balance visual fidelity against file footprint.-rotate : Reorients image data clockwise by a specified degree angle.-crop : Extracts an isolated sub-region based on targeted dimensions and offsets.-size : Defines geometric boundaries when generating synthetic canvases or solid backgrounds.

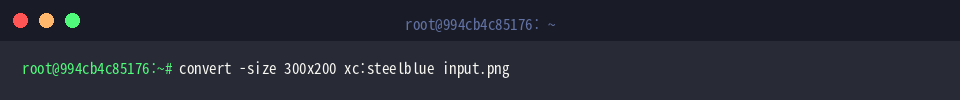

To establish an isolated test fixture, generate a solid-fill raster asset named input.png by pairing -size 300x200 with the built-in xc:steelblue canvas color:

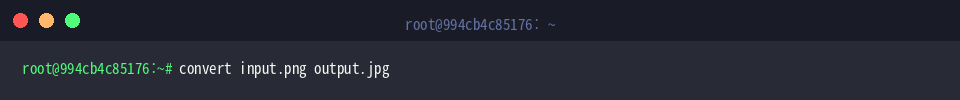

Transcoding this graphic into JPEG format simply requires running convert input.png output.jpg. ImageMagick automatically detects the target container from the output filename extension and initializes the appropriate encoding pipeline:

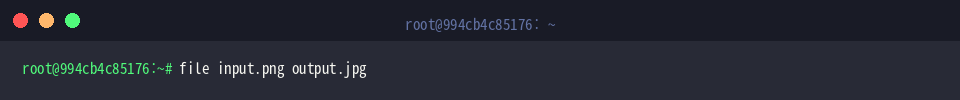

Inspect the structural characteristics and MIME types of both input.png and output.jpg with the file command to ensure the transcoding process succeeded:
Scaling Geometry and Proportions with -resize

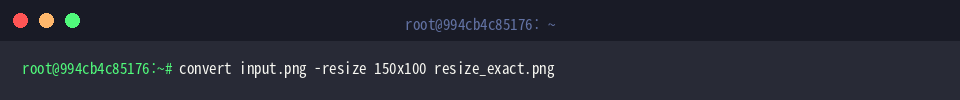

Modifying raster dimensions to fit a specific boundary box is achieved with the -resize 150x100 parameter. ImageMagick automatically scales the graphic proportionally to prevent visual distortion or non-uniform stretching:

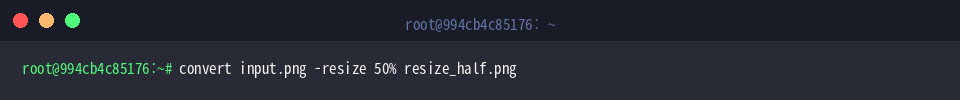

Relative scaling operations can be handled using percentage values. Applying -resize 50% shrinks both horizontal and vertical axes equally to half their baseline size:
To audit and confirm dimensional modifications across generated files, execute the identify utility. It returns essential metadata, including target names, encoding types, pixel dimensions, and channel bit depths:
Rotating and Flipping Images (-rotate, -flip, -flop)

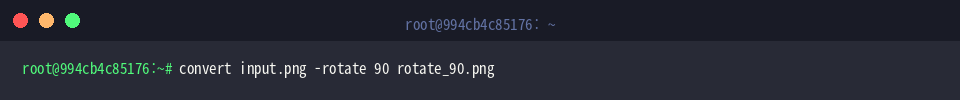

Clockwise quarter-turn transformations are applied using -rotate 90. This rotation naturally transposes the horizontal and vertical resolution axes of the generated image:

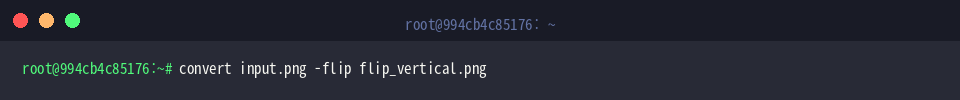

Vertical reflections across the horizontal axis are handled by the -flip parameter. The overall canvas dimensions remain untouched while the row pixel order is inverted:

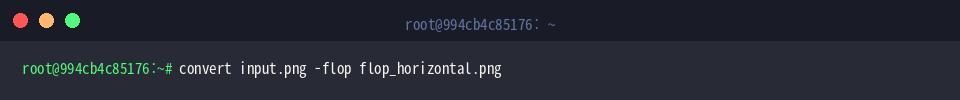

To produce a mirror reflection across the vertical axis (left-to-right inversion), supply the -flop flag instead:

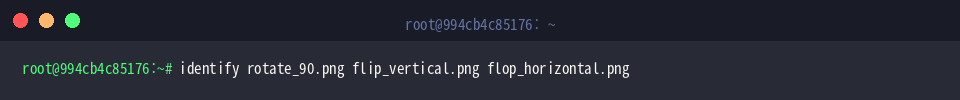

Review the post-transformation attributes of all derived files using identify. Observe how the 90-degree rotated asset reflects transposed dimensions (200x300), while both flipped and flopped counterparts preserve their original 300x200 canvas footprint:
Grayscale Conversion & Quality Tuning (-colorspace, -quality)

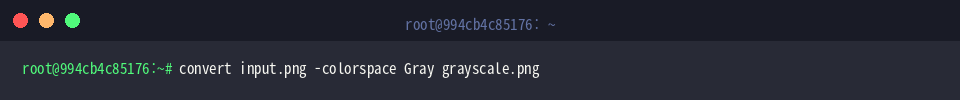

Converting full-color imagery into monochromatic tones is handled by the -colorspace Gray option. This strips individual RGB channels and maps pixel luminance onto an isolated grayscale space:

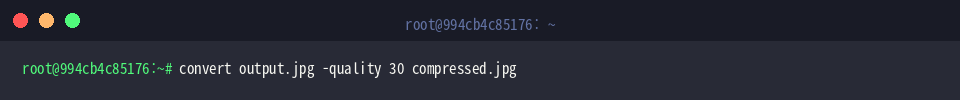

When conserving disk space or network bandwidth is critical, tune compression parameters using -quality 30. Lowering this metric trades off a degree of image clarity for a substantial reduction in byte size:

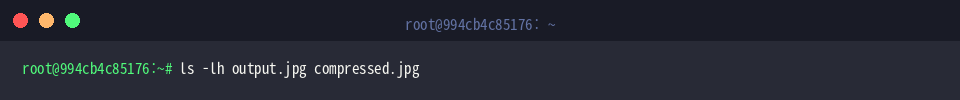

Evaluate real-world storage differences between standard compression and your optimized asset by executing ls -lh output.jpg compressed.jpg. This lists capacity variations in human-readable notation:

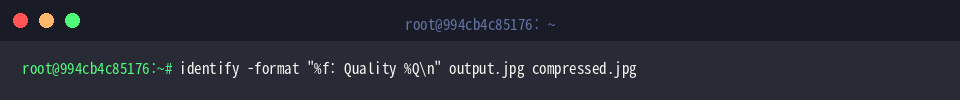

To verify the internal compression ratio stored within each JPEG header, run identify with the custom formatting string -format "%f: Quality %Q\n". Querying the %Q metadata flag confirms that the desired compression level was recorded:
Understanding these core convert parameters allows systems engineers and site administrators to build reliable headless automation pipelines. Combining these flags into shell scripts and scheduled jobs will significantly enhance recurring asset-processing workflows on Ubuntu.
